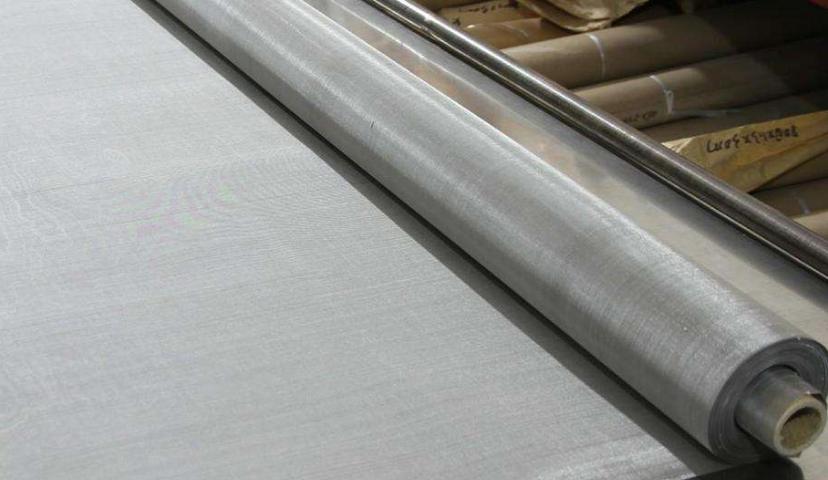

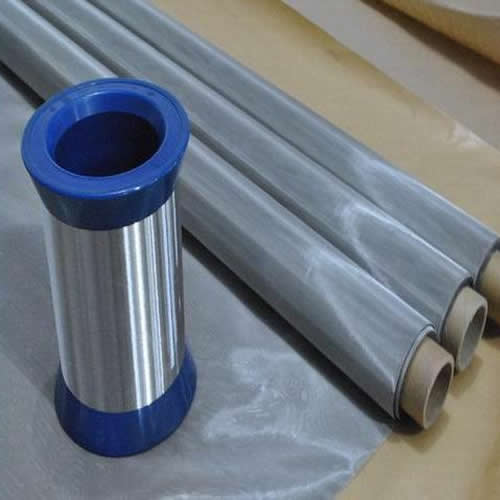

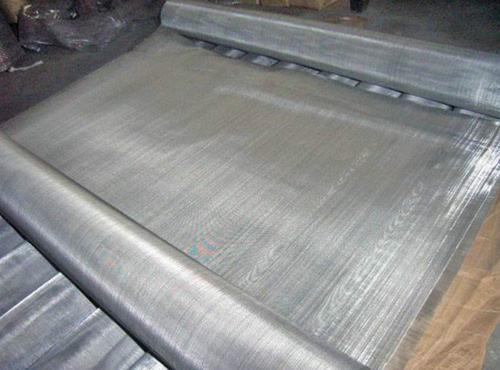

Stainless Steel Wire Mesh


We cordially hope to establish friendly business relationship with worldwide customers. Send your inquiry now and get to learn more about us!


Stainless steel has the good performances as wear-resisting, heat-resisting, acid-resisting and corrosion resisting.

Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.

Our Stainless Steel Wire Mesh products are generally made of SUS302, 304, 316, 316L and 321.

Plain weave:

This is the most commonly used weaving type.

Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.

Mesh/InchWire DiameterApertureOpen AreaWeight(LB) /100 Square Foot
InchMMInchMM
1x1.0802.03.92023.3784.641.1
2X2.0631.60.43711.1076.451.2
3X3.0541.37.2797.0970.156.7
4X4.0631.60.1874.7556.0104.8
4X4.0471.19.2035.1665.957.6
5X5.0411.04.1594.0463.254.9
6X6.035.89.1323.3562.748.1
8X8.028.71.0972.4660.241.1
10X10.025.64.0751.9156.341.2
10X10.020.51.0802.0364.026.1
12X12.023.584.0601.5251.842.2
12X12.020.508.0631.6057.231.6
14X14.023.584.0481.2245.249.8
14X14.020.508.0511.3051.037.2
16X16.018.457.04451.1350.734.5
18X18.017.432.0386.9848.334.8
20X20.020.508.0300.7636.055.2
20X20.016.406.0340.8646.234.4
24X24.014.356.0277.7044.231.8
30X30.013.330.0203.5237.134.8
30X30.012.305.0213.5440.829.4
30X30.009.229.0243.6253.116.1
35X35.011.279.0176.4537.929.0
40X40.010.254.0150.3836.027.6
50X50.009.229.0110.2830.328.4
50X50.008.203.0120.3136.022.1
60X60.0075.191.0092.2330.523.7
60X60.007.178.0097.2533.920.4
70X70.0065.165.0078.2029.820.8
80X80.0065.165.0060.1523.023.2
80X80.0055.140.0070.1831.416.9
90X90.005.127.0061.1630.115.8
100X100.0045.114.0055.1430.314.2
100X100.004.102.0060.1536.011.0
100X100.0035.089.0065.1742.38.3
110X110.0040.1016.0051.129530.712.4
120X120.0037.0940.0064.116830.711.6
150X150.0026.0660.0041.104137.47.1
160X160.0025.0635.0038.096536.45.94
180X180.0023.0584.0033.083834.76.7
200X200.0021.0533.0029.073733.66.2
250X250.0016.0406.0024.061036.04.4
270X270.0016.0406.0021.053332.24.7
300X300.0051.0381.0018.045729.73.04
325X325.0014.0356.0017.043230.04.40
400X400.0010.0254.0015.37036.03.3
500X500.0010.0254.0010.025425.03.8
635X635.0008.0203.0008.020325.02.63

Twill Weave:

The wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric.

Dutch Twilled Weaving:

The wires of the weft and the warp intercross two above with a larger weft wire than the warp.
Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.

Mesh Wire Diameter (MM) Material (AISI)
12meshX64mesh 0.58/0.40 304 or 316
24meshX110mesh 0.36/0.25 304 or 316
14meshX88mesh 0.50/0.33 304 or 316
30meshX150mesh 0.18/0.14 304 or 316
40meshX200mesh 0.14/0.11 304 or 316
50meshX250mesh 0.10/0.071 304 or 316
80meshX700mesh 0.06/0.05 304 or 316
165meshX800mesh 0.071/0.040 304 or 316
165meshX1400mesh 0.05/0.032 304 or 316
200meshX1800mesh 0.05/0.03 304 or 316
325meshX2300mesh 0.030/0.025 316L
400meshX2800mesh 0.030/0.02 316L
